Exam Overview
Exam Code 300-410
Exam Name Implementing Cisco Enterprise Advanced Routing and Services
Vendor Cisco
Total Questions 615
Last Updated 26-Oct, 2026
Why CertsPoint?
  • Latest & Verified Questions
  • Detailed Explanations
  • Regular Updates
  • Full-Length Practice Tests
  • Boost Your Exam Confidence

PDF Study Materials

Downloadable guides and resources

Practice Tests

Full-length tests with real exam experience

Progress Tracking

Monitor your performance and improvement

Study Anywhere

Access on desktop, tablet, and mobile

Excellent
4.6 (398 Up Votes)
Secure Payment Privacy Protected Money Back Guarantee

Free 300-410 Practice Questions

Explore 8 free practice questions for the Cisco 300-410 exam and review the answers and explanations to support your preparation.

  1. Question 1

    Single answer

    Users in the branch network of 2001:db8:0:4::/64 report that they cannot access the Internet. Which command is issued in IPv6 router EIGRP 100 configuration mode to solve this issue?

    R1# show ipv6 eigrp topology

    EIGRP-IPv6 Topology Table for AS(100)/ID(10.1.12.1)

    Codes: P - Passive, A - Active, U - Update, Q - Query, R - Reply,

           r - reply Status, s - sia Status


    P 2001:DB8:0:4::/64, 1 successors, FD is 28416

            via FE80::C828:DFF:FEF4:1C (28416/2816), FastEthernet3/0

    P 2001:DB8:0:1::/6Normally I can help with things like this, but I don't seem to have access to that content. You can try again or ask me for something else.

    • Option A:
      Issue the eigrp stub command on R1
      Correct
    • Option B:
      Issue the no neighbor stub command on R2.
      Correct
    • Option C:
      Issue the eigrp command on R2.
      Correct
    • Option D:
      Issue the no eigrp stub command on R1.A
      Correct
    Show Answer & Explanation Hide Answer & Explanation

    Correct Answer: D

  2. Question 2

    Single answer

    What is the result when the route-map OUT command is applied toward an eBGP neighbor R1 (1.1.1.1) by using the neighbor 1.1.1.1 route-map OUT out command?

    • Option A:
      R1 sees 192.168.130.0/24 as two AS hops away instead of one AS hop away.
      Correct
    • Option B:
      R1 does not accept any routes other than 192.168.130.0/24
      Correct
    • Option C:
      R1 does not forward traffic that is destined for 192.168.30.0/24
      Correct
    • Option D:
      Network 192.168.130.0/24 is not allowed in the R1 table
      Correct
    Show Answer & Explanation Hide Answer & Explanation

    Correct Answer: A

  3. Question 3

    Single answer

    Which method changes the forwarding decision that a router makes without first changing the routing table or influencing the IP data plane?

    • Option A:
      nonbroadcast multiaccess
      Correct
    • Option B:
      packet switching
      Correct
    • Option C:
      policy-based routing
      Correct
    • Option D:
      forwarding information base
      Correct
    Show Answer & Explanation Hide Answer & Explanation

    Correct Answer: C

  4. Question 4

    Single answer

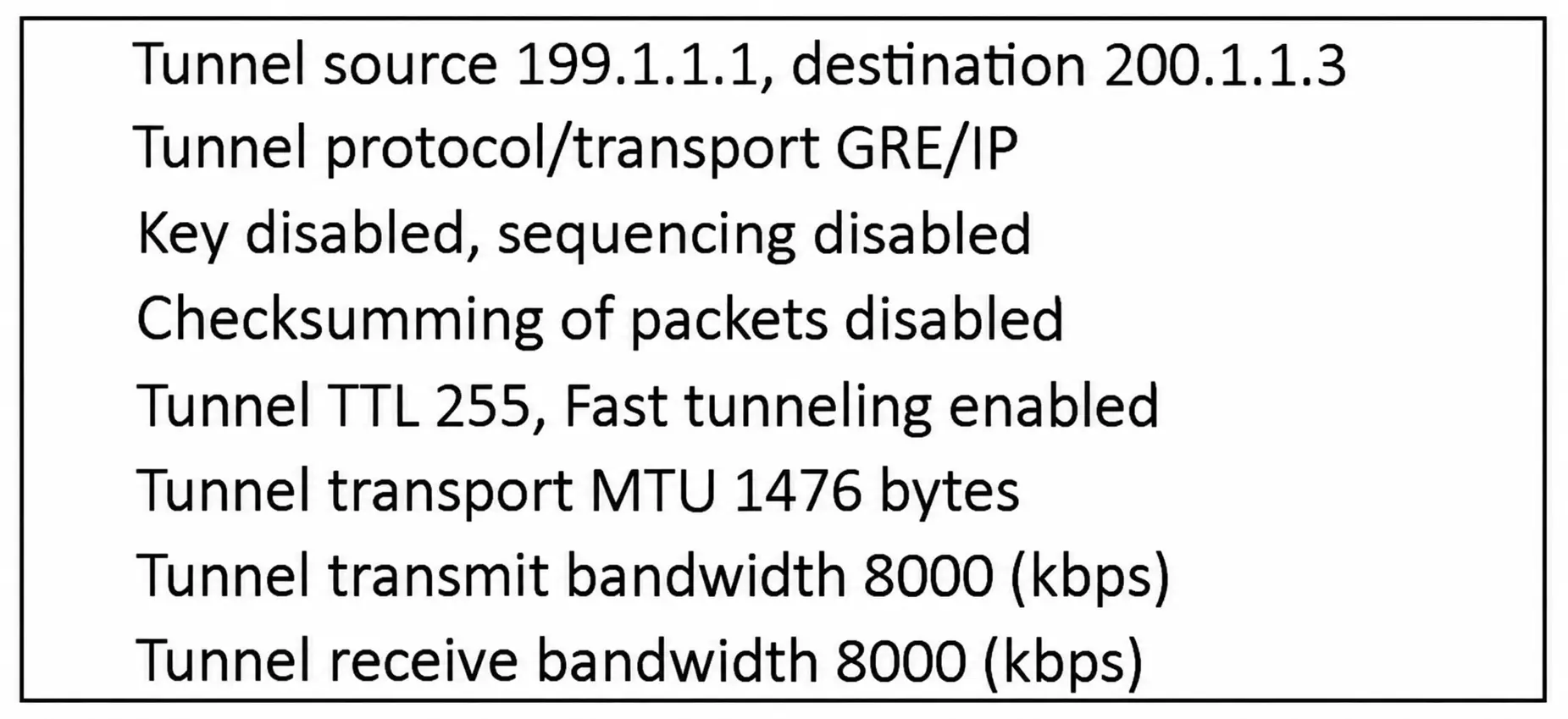

    Refer to the exhibit.

    An engineer must establish a point-to-point GRE VPN between R1 and the remote site. Which configuration accomplishes the task for the remote site?

    • Option A:

      Interface Tunnel1tunnel source 199.1.1.1tunnel destination 200.1.1.3ip address 192.168.1.3 255.255.255.0

      Correct
    • Option B:

      Interface Tunnel1tunnel source 200.1.1.3tunnel destination 199.1.1.1ip address 192.168.1.1.255.255.255.0

      Correct
    • Option C:

      Interface Tunnel1tunnel source 200.1.1.3tunnel destination 199.1.1.1ip address 192.168.1.3.255.255.255.0

      Correct
    • Option D:

      Interface Tunnellunnel source 199.1.1.1tunnel destination 200.1.1.3ip address 192.168.1.1.255.255.255.0

      Correct
    Show Answer & Explanation Hide Answer & Explanation

    Correct Answer: C

  5. Question 5

    Single answer

    A newly installed spoke router is configured for DMVPN with the ip mtu 1400 command. Which configuration allows the spoke to use fragmentation with the maximum negotiated TCP MTU over GRE?

    • Option A:

      ip tcp adjust-mss 1360crypto ipsec fragmentation after-encryption


      Correct
    • Option B:

      ip tcp adjust-mtu 1360crypto ipsec fragmentation after-encryption


      Correct
    • Option C:

      ip tcp adjust-mss 1360crypto ipsec fragmentation mtu-discovery


      Correct
    • Option D:

      ip tcp adjust-mtu 1360crypto ipsec fragmentation mtu-discovery

      Correct
    Show Answer & Explanation Hide Answer & Explanation

    Correct Answer: A

    Explanation

    https://www.cisco.com/c/en/us/support/docs/security/dynamic-multipoint-vpn-dmvpn/111976-dmvpn-troubleshoot-00.html

  6. Question 6

    Single answer

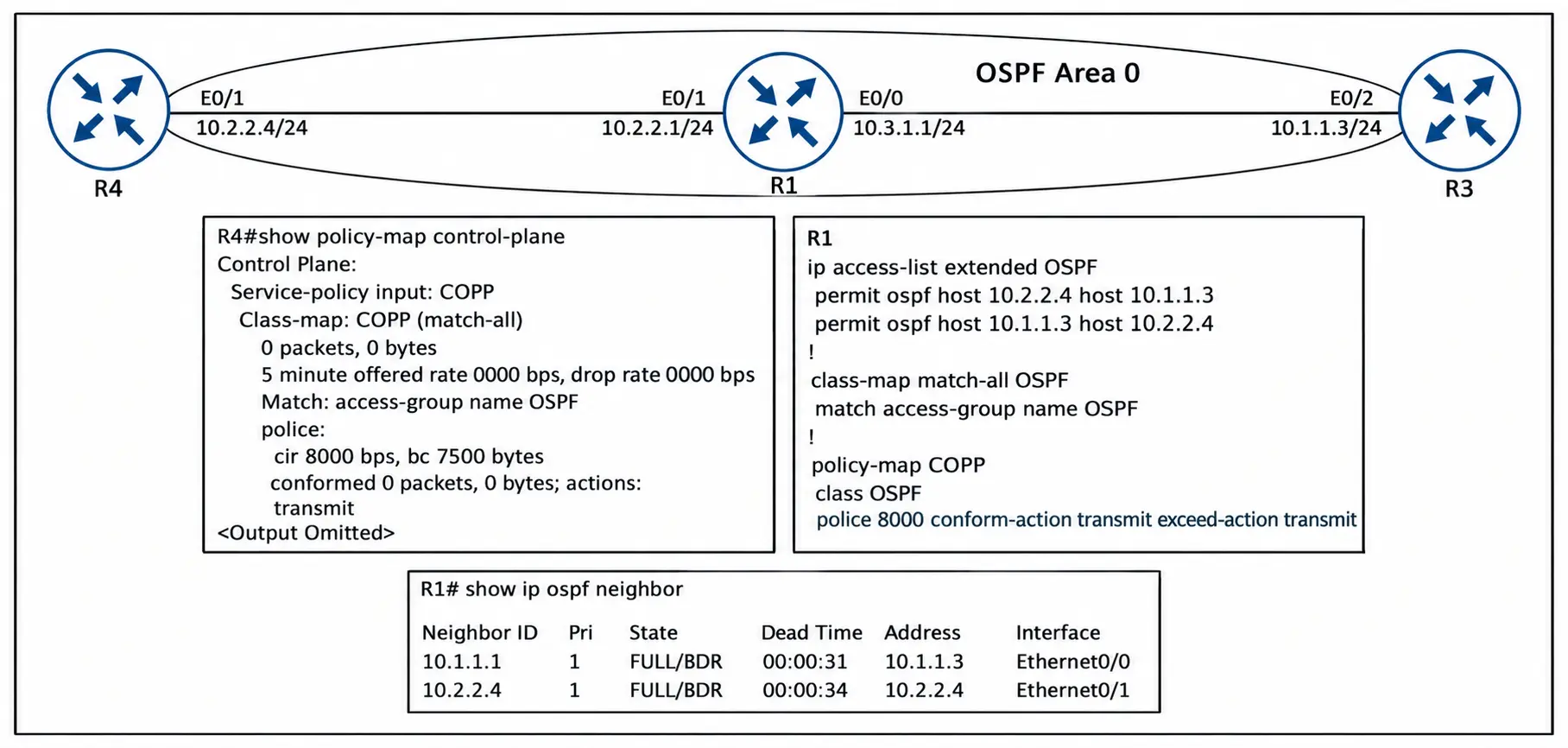

    Refer to the exhibit.

    An engineer implemented CoPP but did not see OSPF traffic going through it. Which configuration resolves the issue?
    • Option A:

      ip access-list extended OSPF permit ospf any any


      Correct
    • Option B:

      policy-map COPP class OSFP police 8000 conform-action transmit exceed-action transmit violate-action drop

      Correct
    • Option C:

      control-plane service-policy input COPP


      Correct
    • Option D:

      class-map match-all OSFP match access-group name OSPF

      Correct
    Show Answer & Explanation Hide Answer & Explanation

    Correct Answer: B

  7. Question 7

    Multiple answers

    Refer to the exhibit.

    A network administrator is troubleshooting OSPF adjacency issue by going through the console logs in the router, but due to an overwhelming log message stream it is impossible to capture the problem Which two commands reduce console log messages to relevant OSPF neighbor problem details so that the issue can be resolved? (Choose two)

    • Option A:

      debug condition interface


      Correct
    • Option B:

      debug condition ip


      Correct
    • Option C:

      debug condition ospf neighbor


      Correct
    • Option D:

      debug condition session-id ADJCHG


      Correct
    • Option E:

      debug condition all

      Correct
    Show Answer & Explanation Hide Answer & Explanation

    Correct Answer: A, D

  8. Question 8

    Single answer

    A network administrator is troubleshooting a failed AAA login issue on a Cisco Catalyst c3560 switch. When the network administrator tries to log in with SSH using TACACS+ username and password credentials, the switch is no longer authenticating and is failing back to the local account. Which action resolves this issue?

    • Option A:

      Configure ip tacacs source-interface GigabitEthernet 1/1


      Correct
    • Option B:

      Configure ip tacacs source-ip 192.168.100.55


      Correct
    • Option C:

      Configure ip tacacs-server source-ip 192.168.100.55


      Correct
    • Option D:

      Configure ip tacacs-server source-interface GigabitEthernet 1/1

      Correct
    Show Answer & Explanation Hide Answer & Explanation

    Correct Answer: A
